Description

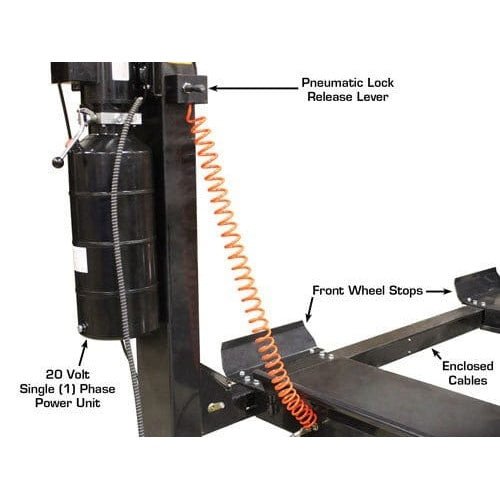

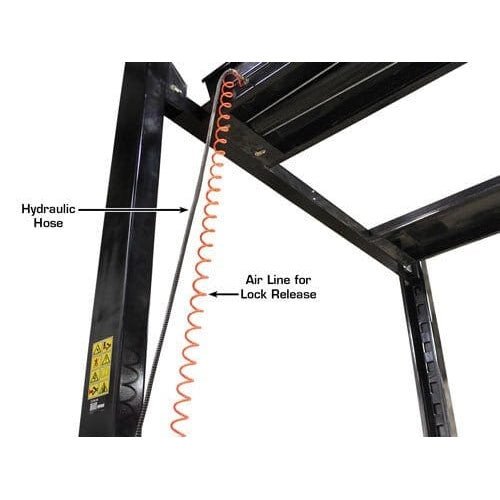

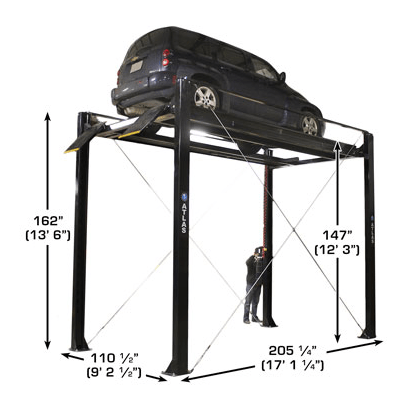

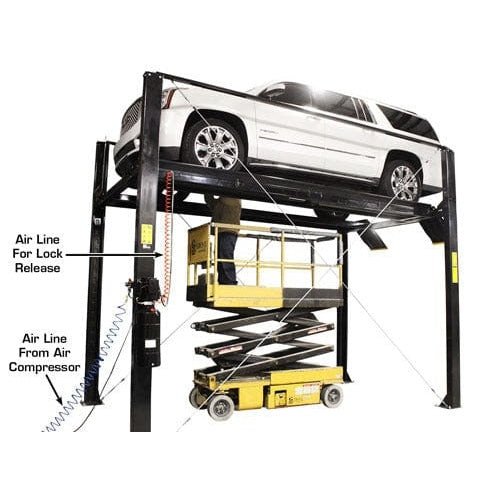

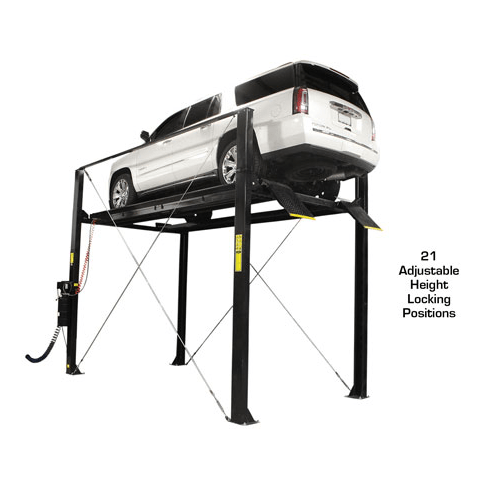

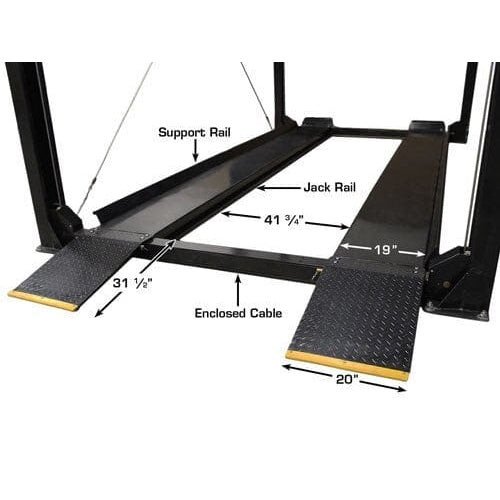

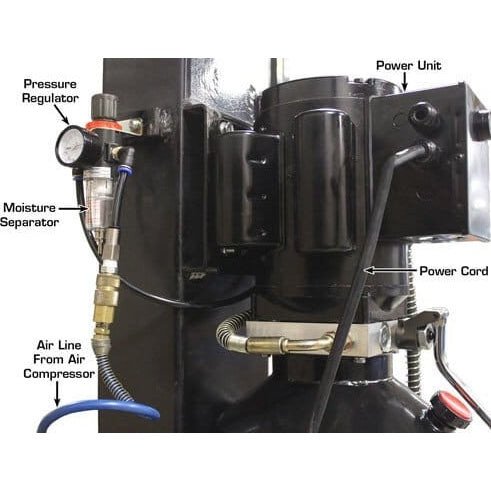

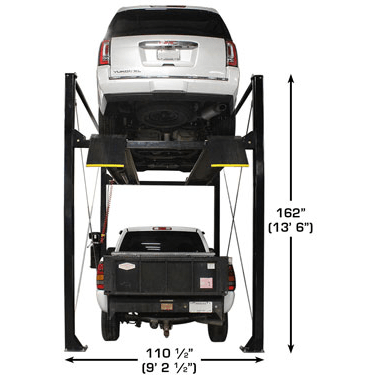

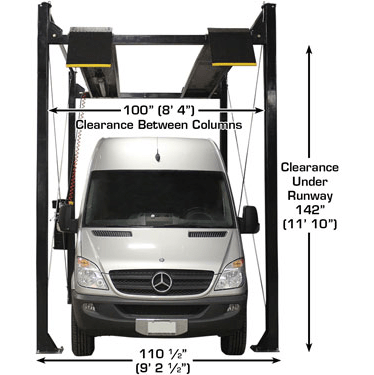

Atlas 7,000 lb. Capacity Super Tall 4 Post Lift The Atlas® Garage PRO7000ST is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway. This super tall four post storage lift uses the same heavy duty runways as the Atlas® Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas® RJ6BK). The extra tall lifting height gives customers the space needed to park much taller vehicles under the vehicle stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights. A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack. .embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; } Features 7,000 lb. Capacity Heavy Duty “Super Tall” Lifting Height Extra Wide & Extra Long Diamond Plated Runways Single Point Release, Pneumatic Locks (External Air Supply Required) Lock Ladder Design Double Lock Safety System Steel Approach Ramps Included Mounting Hardware Included Perfect for Storage or Working on Vehicles 220volt/1phase Electric Operation (Requires 30amp Breaker) Shipping Weight: 2,866 lbs. 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only Specifications Atlas® Garage PRO7000ST Specifications Capacity 7,000 Lb. Lifting Height To Top Of Runway 147" (12′ 3") Clearance Under Runways 142" (11′ 10") Height Of Columns 162" (13′ 6") Overall Width (Without Motor) 110 1/2" (9′ 2 1/2") Overall Width (With Motor) 123" (10′ 3") Overall Length With Approach Ramp 227 1/2" (18’ 11 1/2”) Approach Ramp 31" (2′ 7") Runway Width 21" (w/ Rails) or 20" (Driving Surface) Runway Length 194" (16′ 2") Runway Thickness 4 3/4" Width Between Runways 45" (3′ 9") Width Between Runway Rails 41 3/4" (3′ 5 3/4") Outside Runway To Outside Runway 83" (6′ 11") Clearance Between Columns 100" (8′ 4") Length Between Columns 185" (15′ 5") Maximum Wheel Base 182" (15′ 2") Drive Thru (Outside Of Tire To Outside Of Tire) 82 1/2" (6′ 10 1/2") Motor/Electrical Requirement 220 Volt, 1 phase, 30 AMP BREAKER REQUIRED Shipping Weight 2,866 lb. Locking Positions Under Runway(+/ 2") 23" (1′ 11") 29" (2′ 5") 35" (2′ 11") 41" (3′ 5") 47" (3′ 11") 52" (4′ 4") 58" (4′ 10") 64" (5′ 4") 70" (5′ 10") 76" (6′ 4") 82" (6′ 10") 88" (7′ 4") 94" (7′ 10") 100" (8′ 4") 106" (8′ 10") 112" (9′ 4") 118" (9′ 10") 124" (10′ 4") 130" (10′ 10") 136" (11′ 4") 142" (11′ 10") Documents Atlas® PRO7000ST Manual Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
