Description

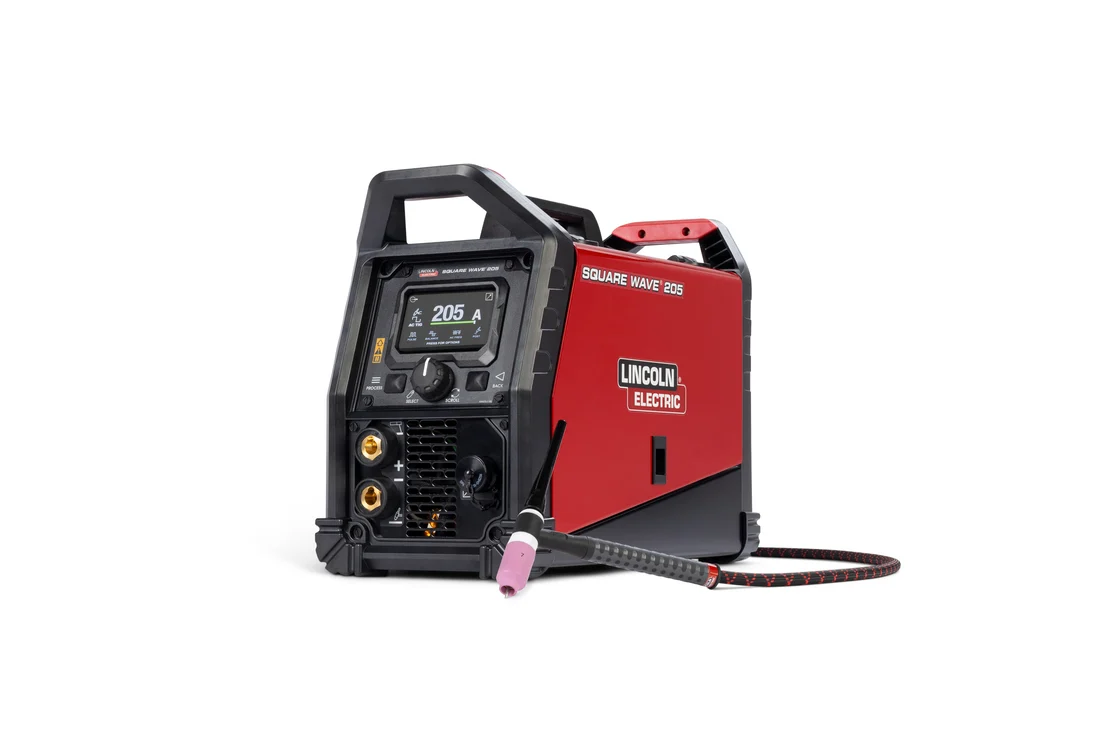

Lincoln Electric Square Wave® 205 AC/DC TIG & Stick Welder

The Lincoln Electric Square Wave® 205 AC/DC TIG Welder brings together precision, simplicity, and versatile welding performance in a compact, portable machine. Featuring a user-focused design, enhanced digital interface, and excellent arc performance, the Square Wave 205 gives both hobbyists and professional fabricators the control needed to tackle demanding welding projects with confidence.

With AC/DC TIG and Stick welding capability, adjustable AC Frequency and AC Balance, plus convenient 120V/230V input power, the Square Wave 205 is an excellent choice for aluminum fabrication, steel and stainless work, repairs, custom projects, and general shop welding.

Key Features

• AC/DC TIG Welding: Provides versatile TIG capability for compatible aluminum, steel, stainless steel, and other materials.
• Stick Welding Capability: Adds flexibility for outdoor repairs, thicker materials, and applications where Stick welding is preferred.
• Adjustable AC Frequency: Allows operators to adjust arc characteristics for a wider or tighter welding bead when working with aluminum.
• Adjustable AC Balance: Provides control over cleaning action and penetration to better match different aluminum conditions and thicknesses.
• Enhanced Digital Interface: User-driven controls simplify machine setup and make important welding adjustments easy to access.
• 120V / 230V Input: Connect to a compatible standard 120V circuit for convenient operation or use 230V when maximum machine output is required.
• Compact & Portable: Weighing approximately 36 lbs (16 kg), the Square Wave 205 is easy to move between the garage, workshop, and jobsite.
• Professional Arc Performance: Designed to provide stable, responsive arc characteristics for precision welding applications.
• Foot Amptrol™ Included: Provides convenient foot-controlled amperage adjustment during compatible TIG welding applications.

Excellent Aluminum TIG Performance

The Square Wave 205 gives welders the controls needed to fine-tune aluminum TIG performance. AC Frequency Control can be adjusted to modify the arc and produce a wider or tighter bead depending on the application.

AC Balance Control provides additional flexibility by allowing operators to increase cleaning action when working with oxidized or contaminated aluminum or adjust the setting to maximize penetration on thicker compatible material.

TIG & Stick from One Power Source

The Square Wave 205 combines two useful welding processes in one compact power source. TIG welding provides the precision and bead appearance required for detailed fabrication, while Stick welding adds versatility for outdoor work, repairs, and thicker materials.

Take It Everywhere, Plug In Anywhere™

Dual-voltage capability makes the Square Wave 205 easy to integrate into different working environments. It can operate from compatible 120V or 230V power, giving operators convenient electrical flexibility without sacrificing portability.

At approximately 36 lbs (16 kg), the machine is compact enough to transport between work areas while still providing the welding capabilities required for serious fabrication projects.

Product Specifications

Brand	Lincoln Electric
Model	Square Wave® 205
Product Type	AC/DC TIG & Stick Welder
AC TIG	Yes
DC TIG	Yes
Stick Welding	Yes
AC Frequency Control	Adjustable
AC Balance Control	Adjustable
Input Power	120V / 230V
Machine Weight	Approx. 36 lbs (16 kg)
Configuration	Compact / Portable

What’s Included

• (1) Lincoln Electric Square Wave® 205 TIG Welder
• (1) K5339-17F-1 Caliber® 17 TIG Torch Ready-Pak®
• (1) K870 Foot Amptrol™
• (1) Gas Regulator / Flowmeter
• (1) 10 ft (3 m) Gas Hose Kit
• (1) 200A Stick Electrode Holder
• (1) Ground Clamp and Cable
• (1) 120V / 230V Adapter

Additional TIG Equipment

• Caliber® 17/18/26 Series TIG Torch Expendables Kit: 0.040″–3/32″ – KP4760-MD
• Caliber® 17 Series TIG Torch Ready-Pak: Rigid, 12.5 ft (3.8 m) – K5339-17-1
• Model 601-Ar5-30-580 Single-Stage Flowgauge Regulator: 3000369
• Foot Amptrol™: 25 ft (7.6 m), 6-Pin – K870

Precision, Control & Portability

Whether you’re working on aluminum fabrication, precision TIG projects, repairs, custom metalwork, or Stick welding applications, the Lincoln Electric Square Wave 205 combines adjustable AC controls, AC/DC capability, dual-voltage flexibility, and a lightweight design in one versatile welding platform.

Safety Notice: Welding equipment can expose users to substances identified by the State of California as causing cancer and reproductive harm. Always follow the manufacturer’s operating instructions and appropriate workplace safety requirements.
