Description

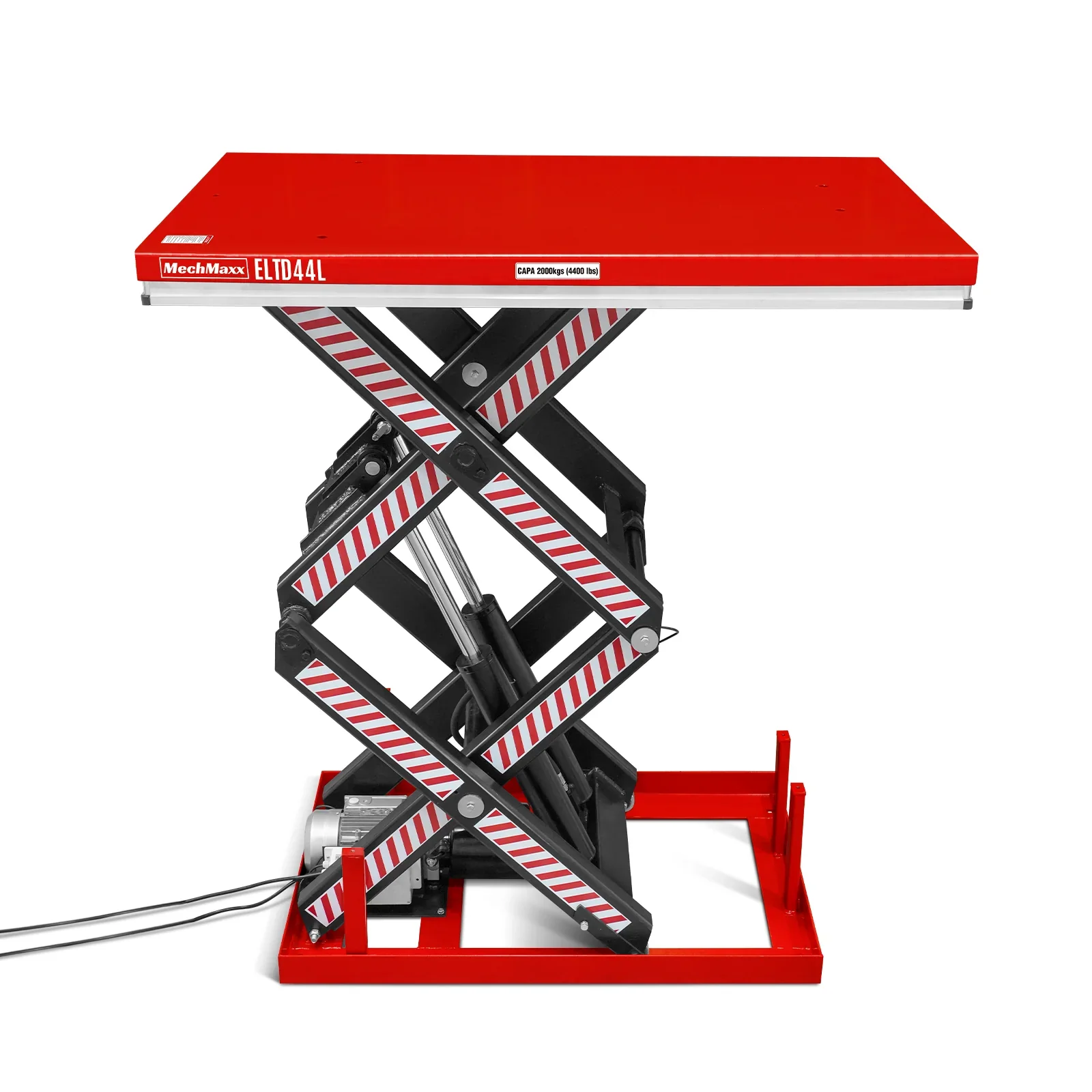

Product Overview Equipped with a 3 HP 110V motor and a heavy duty hydraulic pump. Weight Capacity: 4400LBS,Raised Height 70.1″,Platform Size:63″ x 39.4″. Ideal for locations such as warehouses, manufacturing plants and distribution centers. By lifting heavy objects to the proper height, employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works. With Safety guard,when the safety frame presses against obstractions, the hydraulic pump will automatically lock and the platform will stop descending. The safety gap between the scissors can avoid pinching;. The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts. The detachable lifting ring is convenient Countertop installation and acces. The ELTD44L is a stationary double-scissor lift table that raises 4,400 lbs to 70.1″ on a wide 63″ x 39.4″ steel platform. The double-scissor stack combines a big deck with tall 70-inch travel, so crews can stage large or heavy loads and feed racks, mezzanines, or elevated lines from a low 14.2″ load height. A 3 HP electric-hydraulic drive on 110V power moves it, with hand-operated control and no assembly required. 4,400 lb capacity on a wide 63″ x 39.4″ steel platform Double-scissor travel from 14.2″ lowered to 70.1″ raised Large deck plus tall lift for bulky, heavy loads 3 HP electric-hydraulic power, 110V/60Hz single-phase Hand-operated control, ships fully assembled Specifications Model ELTD44L Voltage 110V 60HZ 1PH Weight Capacity 4400LBS Platform Size 63″ x 39.4″ Raised Height 70.1″ Lowered Height 14.2″ Base Size 50.6″x32.3″ Motor Horsepower 3HP /2.2KW Power Type Electric-Hydraulic Scissor Type Double Scissor Lift Lift Control Hand Operated Material Steel Assembly Required No Wire Length 16FT Packing Size: 64″ x 40″ x 19″ N.W.:/ G.W.: 722/948 LBS WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
