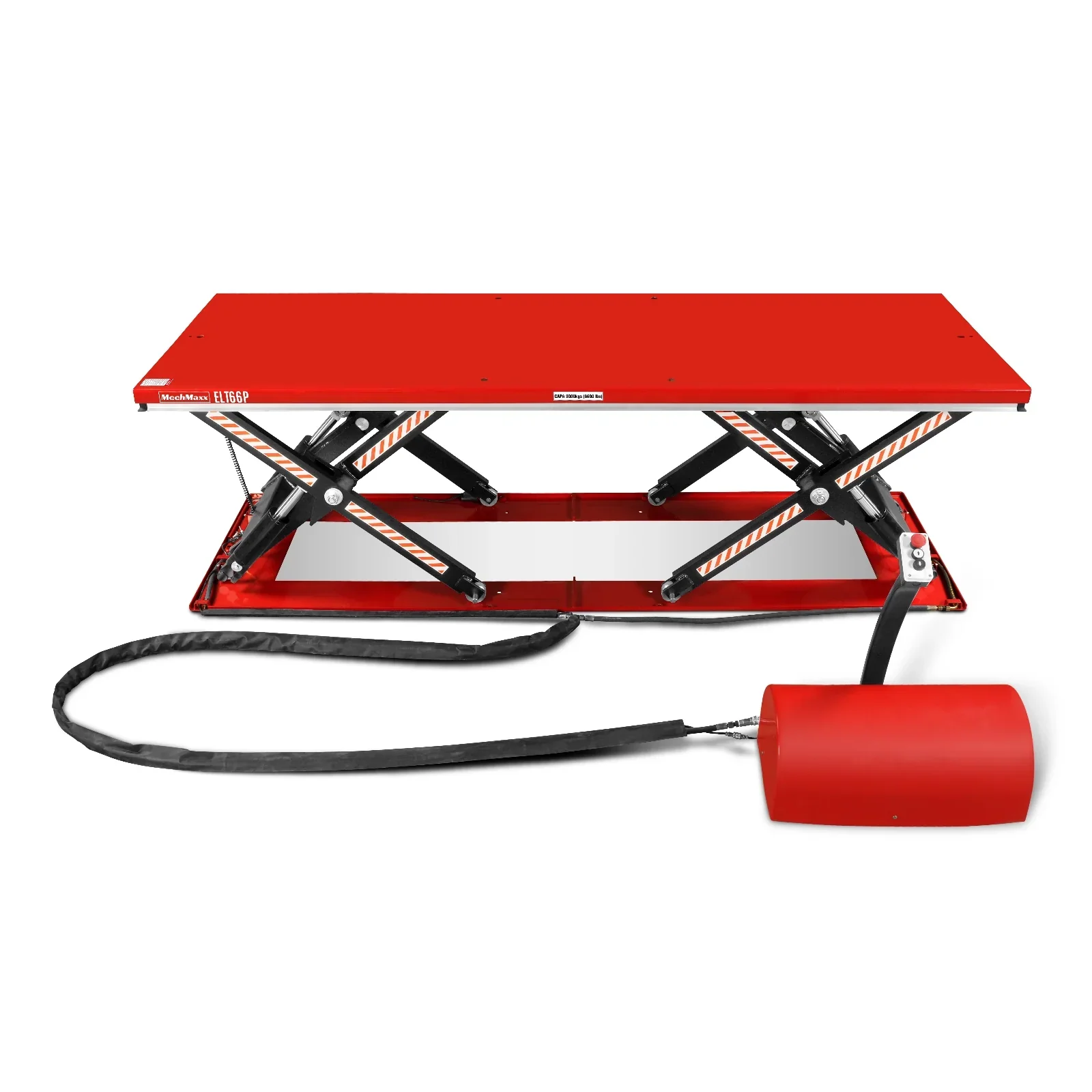

Product Overview Equipped with a 3HP 110V motor and a heavy duty hydraulic pump. Weight Capacity: 6600LBS,Raised Height 34.3″,Platform Size:112.2″ x 39.4″ . Ideal for locations such as warehouses, manufacturing plants and distribution centers. By lifting heavy objects to the proper height, employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works. With Safety guard,when the safety frame presses against obstractions, the hydraulic pump will automatically lock and the platform will stop descending. The safety gap between the scissors can avoid pinching. The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts. The detachable lifting ring is convenient Countertop installation and acces. Note！ Only connect or disconnect the hydraulic pipe valve when the platform is lowered to its lowest position. Do not disconnect when the platform is raised. The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform. The ELT66P is a heavy-duty parallel double-scissor lift table rated for 6,600 lbs on a long 112.2″ x 39.4″ platform – sized for pipe, beams, lumber, and other extended stock. A low 4.1″ collapsed height clears floor-level and pallet-jack loading, and it raises to 34.3″ for comfortable work. A 3 HP electric-hydraulic drive runs on standard 110V power with hand-operated control. 6,600 lb capacity on a long 112.2″ x 39.4″ steel platform Parallel double-scissor design for long, heavy stock Low 4.1″ lowered height for floor-level loading Raises to a 34.3″ working height 3 HP electric-hydraulic power, 110V/60Hz single-phase, hand-operated control Specifications Model ELT66P Voltage 110V 60HZ 1PH Weight Capacity 6600LBS Platform Size 112.2″ x 39.4″ Raised Height 34.3″ Lowered Height 4.1″ Base Size 108.7″x35″ Motor Horsepower 3HP /2.2KW Power Type Electric-Hydraulic Scissor Type Double Parallel Scissor Lift Lift Control Hand Operated Material Steel Wire Length 16FT Packing Size: 113″ x 40″ x 9″(Box A)33″ x 18″ x 18″(Box B) N.W.:/ G.W.: 1362/1765 LBS(Box A)71/95 LBS(Box B) WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
