Description

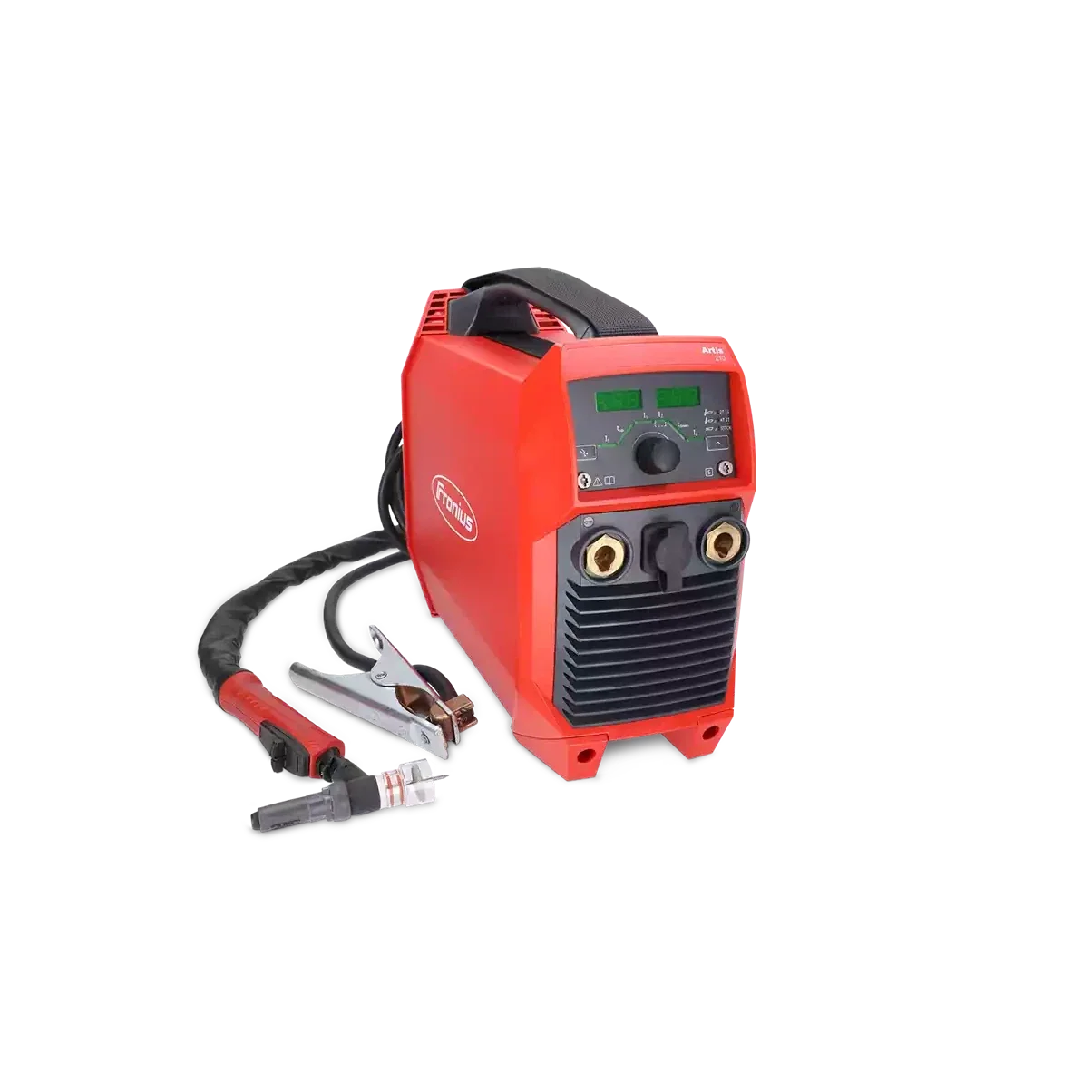

Fronius Artis 210A DC TIG Welding Power Source

The Fronius Artis 210 is a professional DC TIG welding power source engineered around what matters most to welders in demanding environments: a stable, precise arc, dependable output, and efficient performance.

Advanced resonant inverter technology provides precise arc control while helping the machine maintain consistent output when input voltage fluctuates. Combined with multi-voltage capability, a rugged lightweight housing, and advanced TIG and Stick functions, the Artis 210 is designed for professional shop, fabrication, maintenance, and field applications.

Key Features

• 210A Maximum Output: Delivers up to 210 amps of welding power for demanding DC TIG applications.
• 40% Duty Cycle at 210A: Capable of welding for approximately four minutes within a ten-minute duty-cycle period at maximum 210A output.
• Resonant Inverter Technology: High operating frequency and precise electronic control provide a stable, responsive welding arc.
• Multi-Voltage Capability: A wide input-voltage range makes the Artis 210 suitable for use with a variety of compatible electrical grids and power supplies.
• Input Voltage Compensation: Inverter technology helps compensate for voltage fluctuations or low input voltage to maintain consistent welding performance.
• DC TIG & Stick Capability: Provides professional TIG functionality along with Stick/MMA welding for increased versatility.
• High-Frequency TIG Ignition: Allows non-contact arc starting for clean and precise TIG starts.
• Touch HF Ignition: Supports applications where torch access or configuration requires ignition after controlled contact with the workpiece.
• Pulse & TAC Functions: Provides additional control over welding parameters for specialized TIG applications.
• Gas Test / Purging Function: Allows the operator to check and adjust shielding-gas flow without striking an arc and to purge the torch hose package after extended downtime.
• IP23 Protection Rating: Designed to provide protection against environmental exposure such as rain, dirt, and debris within the limits of the IP23 rating.
• Durable Lightweight Construction: A reinforced plastic housing and internal function carrier securely support components while helping keep overall machine weight manageable.

Advanced TIG Functions

High-Frequency Ignition

High-frequency ignition provides precise, non-contact arc starting to help minimize tungsten contamination and improve starting performance.

Gas Test & Purging

The gas-test function allows shielding-gas flow to be checked and adjusted without igniting the welding arc. The system can also be used to purge the torch hose package following extended periods of inactivity.

Pulse & TAC

The PTD Pulse/TAC display function adds Pulse and TAC parameters to the control-panel function curve, giving the operator additional control over the welding process.

Advanced Stick Welding Functions

• Universal Pulse Mode: Helps improve control during out-of-position welding and increases gap-bridging capability, particularly when welding vertical-up seams.
• Anti-Stick: If the electrode sticks and creates a short circuit, the power source shuts down welding current to help prevent electrode overheating and weld defects.
• Arc-Force Dynamic: Automatically provides a brief increase in current when necessary to help prevent the electrode from sticking and maintain a stable arc.

Included with the Fronius Artis 210

• Artis 210A DC TIG Welding Power Source
• 180A Air-Cooled TIG Torch Package with Up/Down Controls – 26 ft
• 220A Air-Cooled TIG Torch Body
• Ground Cable – 13 ft
• Electrode Holder with Cable – 13 ft
• Tool Case 85 Carrying Case
• Gas Adapter
• Gas Regulator
• Consumable Kit

Product Specifications

Brand	Fronius
Model	Artis 210
Maximum Output	210A
Primary Welding Process	DC TIG
Additional Process	Stick / MMA
Duty Cycle	40% at 210A
Arc Starting	High Frequency / Touch HF
Pulse Function	Yes
TAC Function	Yes
Anti-Stick	Yes
Arc Force	Yes
Gas Test / Purging	Yes
Inverter Technology	Resonant Inverter
Protection Rating	IP23

Professional TIG Performance

For welders who need precise arc control, portability, advanced TIG functionality, and dependable Stick capability, the Fronius Artis 210 delivers a versatile professional welding platform designed for both workshop and field use.
